Large CNC Bending Machine

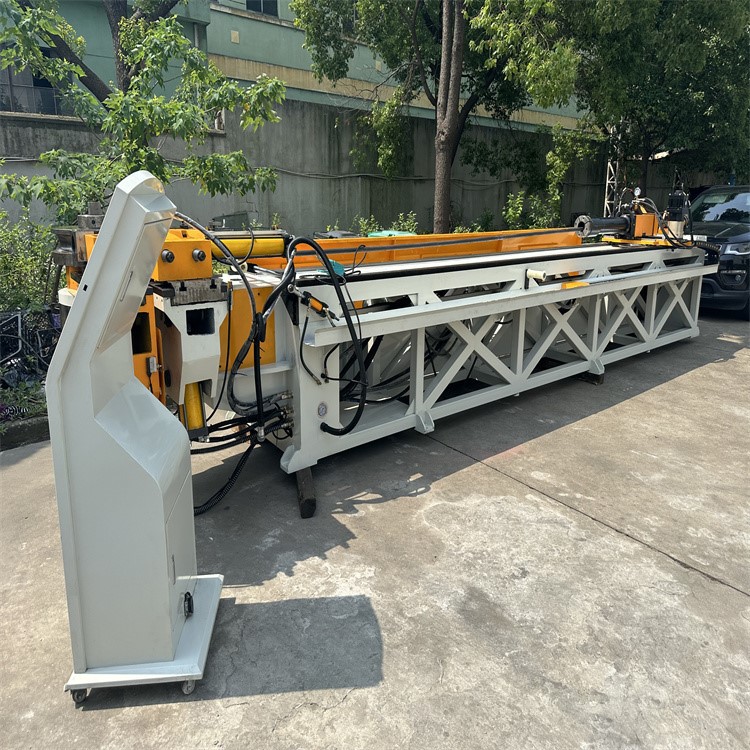

DW89CNC2A1S Fully automatic CNC pipe bending machine

1. Equipped with slow bending and slow rewinding function, it can effectively improve the accuracy and speed of bending.

2. The mold adopts Cr12MOV and 42CrMO forging materials, which have the characteristics of high hardness, wear resistance, and long service life, greatly improving the stability of the equipment.

3. The bending pipe is driven by hydraulic pressure, which is strong and powerful;

4. The turning angle and feeding are driven by servo motors, which are fast and accurate;

5. It can store multiple sets of processing programs simultaneously and can be flexibly switched, which facilitates the processing of a wide variety of products and greatly improves production efficiency;

6. It has the function of automatically detecting errors and faults. When any abnormal action occurs or there is any danger, the equipment will immediately shut down and issue an alarm to help operators troubleshoot errors.

7. The rotating arm adopts a floating clamp structure, which is non-interference and can directly feed after being released from the clamp, improving work efficiency;

8. The hydraulic system is equipped with a water cooling device, which can effectively reduce oil temperature, improve equipment stability, and extend the service life of hydraulic components;

9. The bent pipe adopts Eaton's lever type from the United States, avoiding the angle instability caused by loose chains during traditional chain bending.

10. The bending direction of the pipe fittings is clockwise when viewed from above.

1. Electric control system: Using well-known Japanese controllers.

2. The Mitsubishi ultra large CPU can accommodate 400 sets of file editing. Each file can be set with 16 bend angles, and the memory can store 60 sets of files

3. All processing data has touch screen input.

4. It has the function of detecting errors and faults, and is displayed on the screen, making it easy for operators to troubleshoot.

5. Each bend pipe can have compensation values, speed, and demolding clearance set according to different material changes.

6. The feeding method can be selected as direct or clamp feeding according to different needs.

7. It can automatically convert XYC coordinates into YBC machining values

8. After the data editing is completed, there is password protection to prevent the data from being arbitrarily modified

9. The feeding position, safety position, clamping interference position, and guide interference position of the feeding cart can be manually adjusted and automatically memorized to eliminate human measurement errors and machine collision losses.

10. The feeding shaft will automatically detect before operation to avoid collision with the machine

11. During actual bending, decomposition actions can be selected to observe interference points, modify actions, and improve production efficiency.

12. The machine has a communication interface and a data machine. Remote monitoring is possible
