Aluminum Pipe Cutting Machine
Carefully designed feeding mechanism with unique left and right floating function, not damaging the surface of the workpiece, capable of cutting multiple materials at once and feeding multiple times; Unique fixture design, by adjusting the height of the single-sided fixture, rectangular tubes of different external dimensions can be cut without the need for fixture replacement, making it convenient and fast.
MC425CNC-1.5 fully automatic pipe cutting machine

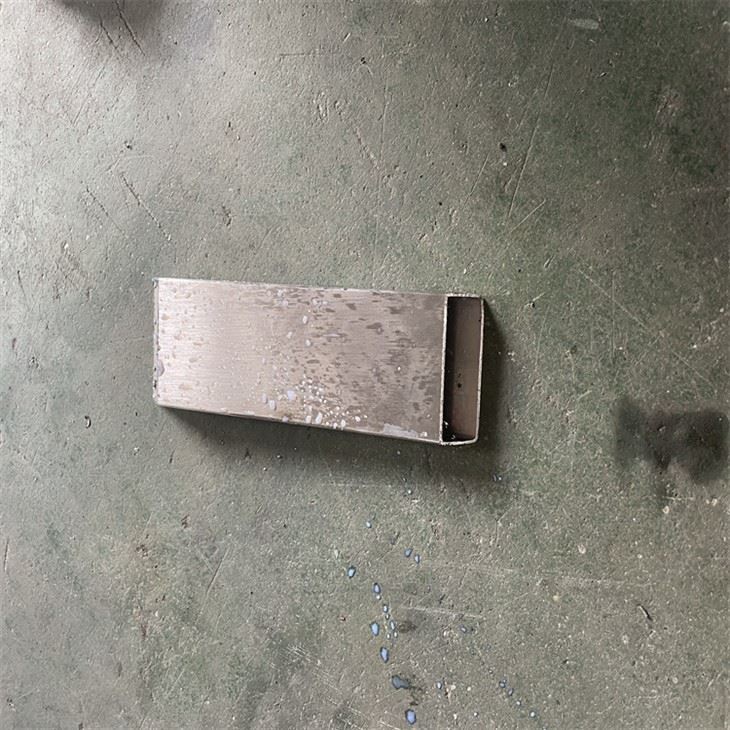

Equipment photos
Mechanical characteristics
1. The machine head adopts a linear guide rail for up and down feeding and feeding, with stable feeding, precise feeding, and high sawing accuracy;
2. Internal full gear transmission is suitable for heavy-duty cutting, with stable accuracy; Adapt to cutting materials such as carbon steel, stainless steel, and copper by replacing the saw blade and adjusting the speed.
3. Carefully designed feeding mechanism with unique left and right floating function, not damaging the surface of the workpiece, capable of cutting multiple materials at once and feeding multiple times; Unique fixture design, by adjusting the height of the single-sided fixture, rectangular tubes of different external dimensions can be cut without the need for fixture replacement, making it convenient and fast.
4. Using PLC touch screen control buttons for centralized, simple and convenient operation, contactless, and high stability; Automatic shutdown without material, capable of automatic clamping, automatic feeding, automatic cutting, and automatic cycle production.
5. Automatic circulation of coolant improves the durability of the saw blade and the smoothness of the cutting surface of the workpiece;
6. Configure electronic sawing quantity settings and counting quantity;
7. Centralized processing of sawdust is convenient and clean;
8. Device digital display touch screen, easy to adjust length, fast and accurate.
9. Install safety protective covers to avoid physical injury to operators, and add soundproofing cotton inside to effectively reduce noise during cutting, without causing hearing damage to operators.
Main technical parameters
1. Sawing motor: dual speed motor 3.3/4KW 4-pole the Taihu Lake
2. Oil pump motor: 2.2KW the Taihu Lake special motor
3. Spindle speed: 60/120; 120/240
4. Single feeding journey: 1.5 meters
5. Cooling water pump: 90W automatic cooling cycle
6. Applicable saw blade: high-speed steel saw blade, outer diameter 350-450mm, center hole Φ 32mm
7. Oil pressure system: working pressure 25-50kg/c ㎡
8. Mechanical weight: 1300kg
9. External dimensions: 3800x2200x1200mm
